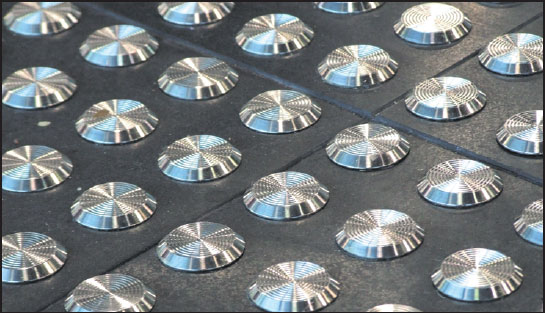

Tactile Indicator Studs

Zoom View Larger

Tactile Indicator Studs

Tactile Indicator Studs

Designed to meet all aspects of the AS/NZS 1428.4 Tactile Ground Surface Indicatorsincluding the minimum luminance contrast and anti-slip requirements. Indicatorscomply with the Building Code of Australia and exceed the anti-slip requirements ofAS/NZ4586. The grit option is ideal for metallic surfaces to achieve 60% luminancerequirements under AS/NZS 1428. All styles have achieved a R13 Slip Rating which isthe highest available under AS/NZS 4586.Studs are 35mm in diameter, 5mm protrusion height. Spigot measures 15x6mm. Note:To cover an area of 600 x 900mm, you will need 216 studs - generally the minimumrequirement for a single hazard, however you will require two lots to cover the top andbottom of the hazard. Installation Kits:Spigot Installation Kitincludes – template, 6mmdrill bit with limit sheath,adhesive, caulking gun,installation instructions.Plain-Backed InstallationKit comes with – template,cleaning agent, abrasive pad,adhesive, adhesive applicatorgun, installation instructions.For additional adhesive seeprice table. Note: Adhesive in kits will cover a 600 x 900mm area at the top and bottom of a hazard. Additionaladhesive for spigotted studs will do approximately 300 studs, additional adhesive fornon-spigotted studs will do approximately 120 studs. With a depth of 600mm, 240 studs cover 1lineal metre. Complies to AS/NZS 1428.4 Tested to AS/NZS 4586,R13 Slip Resistance, exceeding the R10 requirement.
Products
Part No. Short Description U.O.M.
848447 Stainless Steel Tactile Plain Back EA
861034 S/Steel Tactile Grit Plain Back Yel EA
861035 S/Steel Tactile Grit Plain Back Blk EA
 Please Note: Product Image is indicative only - may differ according to colour and other product specifications.
